MIDIVOX SHIELD FOR ARDUINO
MidiVox turns an Arduino board into a programmable MIDI synthesizer.
The assembled kit provides an isolated MIDI input jack along with a single-channel, 12-bit, digital audio output. Any MIDI keyboard with a DIN-5 output can be used to control the shield. Assignable knobs/faders on your controller will come in handy for modifying synth parameters as sou play.
Intended for use as an experimental digital synthesizer, the board can be easily modified for use as a MIDI->CV converter or a MIDI output device.
The kit incorporates an MCP4921 Digital to Analog Converter (DAC) chip, with an 6N138 optocoupler for industry-standard MIDI input.
Features include:
- Indicator LEDs for power and MIDI data
- 2-pole passive lowpass filter
- Onboard volume trimmer w/ knob
- Slide switch for allowing MIDI or Arduino programming data
- Single channel 12-bit audio out
- optocoupled MIDI input

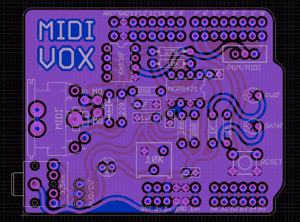

- a fine lookin’ PCB
Code:
Healer Synth v2 (previous version available here)
Healer Synth v2 (previous version available here)
- monophonic synthesizer based off of Marc Nostromo's Arduino Piano Squealer
- requires Tim Twillman's Arduino MIDI library
- responds to MIDI note #s 0-84
- new - saves custom parameters to built-in memory (EEPROM)
- 8 customizable parameters controllable via MIDI CC messages:
| MIDI CC# | Synth Parameter |
| 0 | Waveform Select |
| 1 | Filter Resonance |
| 2 | Filter Cutoff |
| 3 | Filter Type |
| 4 | Filter Envelope (0 to disable) |
| 5 | Wave Loop/Truncate |
| 6 | Attack Time |
| 7 | Release Time |
The Healer Synth code is divided into 7 parts (.pde & .h files):
- MidiVox_Healer_v1 - the main loop
- MidiSetup - implements the MIDI Library and passes info to synthcontroller
- SynthController - converts control parameters for the synth engine
- SynthData - contains all wavetable data (waveforms) used by synthengine
- Fixed - fixed point arithmetic conversion used by synthengine
- SynthEngine - calculates a sample from control params & wavetables to send to the DAC
- Hardware - formats and sends data out to the DAC
Demonstration Video:
Availability:
Kits were sold exclusively through Maker Shed, but are now sold out.
